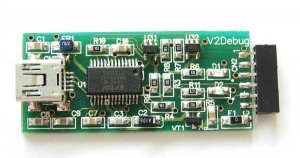

The VNC2 debug module consists of a miniature board with a USB miniB connector, which provides USB connectivity to Vinculum-II IDE development tools running on a PC. The VNC2 debug module can be used to program and debug firmware running on the VNC2 device.
The module connects to the VNC2 device via a 6-way, 2mm pitch, keyed, female connector. The V2DIPx-x, VNC2 based development modules are equipped with a compatible male connector to host the VNC2 debug module. Designers intending to use the module with their own VNC2 based hardware are required to have a similar compatible male connector on their hardware
Applications
Enable firmware programming of VNC2 devices on V2DIPx-x development modules and custom VNC2 based hardware.
Debug firmware code running on a VNC2 device.
Features:
One USB ‘miniB’ type socket to connect with a PC.
Onboard FTDI FT232R which provides conversion from USB to serial interface for VNC2 debug port.
Low USB bandwidth consumption.
USB2.0 Full Speed compatible.
UHCI/OHCI/EHCI host controller compatible.
5V Power output to V2DIP-x module (if needed).
USB powered.
Programming and debugging for VNC2 IC designs.
Power and traffic indicator LEDs
6 way, keyed connector to support FTDI’s range of V2DIPx-x development modules.
Drivers:
USB drivers for the FT232R device, featured on the VNC2 debug module, are available from http://www.ftdichip.com/FTDrivers.htm.
Documentation:
* Datasheet - http://www.bravekit.com/document/FTDI/VNC2L/VNC2_debugger/DS_V2Debug_Module.pdf
* AN_138_Vinculum-II_Debug_Interface_Description - http://www.bravekit.com/document/FTDI/VNC2L/VNC2_debugger/AN_138_Vinculum-II_Debug_Interface_Description.pdf
* Official FTDI-website http://www.ftdichip.com/Products/ICs/VNC2.htm
* Vinculum II Toolchain, other utilities for working with VNC2 - http://www.ftdichip.com/Firmware/VNC2tools.htm
* Ready firmware for VNC2 -
