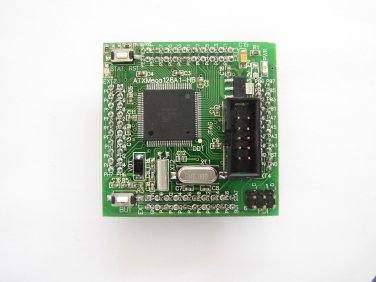

ATXmega128A1-HB is inexpensive way to develop and prototype circuits with ATxMEGA128A1 microcontroller. All microcontroller pins are available on extension header with 2.54mm (0.1") and power supply, oscillators, ICSP, JTAG are wired, so all you need to do is to connect your additional components to the AVR ports, as the step is 2.54mm (0.1") these headers perfectly fit the prototype sea of pad boards with 2.54mm (0.1") step.
FEATURES
* ATxMega128A1-AU microcontroller with 128 KB Flash, 8KB RAM, 4 KB EEPROM, 32Mhz clock
* JTAG 5x2 pin connector for in-circuit debugging with ATJTAGICE-MK2
* PDI 3x2 pin connector for programming with any AVR ISP mkII compatible programmer
* 8 MHz scillator circuit
* 32768 Hz oscillator circuit
* Reset button and circuit
* User button
* user LED
* +3.3V voltage regulator
* power supply filtering capacitors
* extension pin headers for each uC pin
* FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component print
* dimensions 49x49 mm (1.9x1.9")
DOCUMENTS:
* ATXmega128A1-HB schematic ( http://www.bravekit.com/document/AVR_boards/ATXmega128A1HB/ATXMega128A1HB_schem.pdf )
SOFTWARE:
* AVR-HX128A1 ADC interrupt and ADC polled examples C source and HEX ( http://www.bravekit.com/document/AVR_boards/ATXmega128A1HB/adc_example_interrupt.zip and http://www.bravekit.com/document/AVR_boards/ATXmega128A1HB/adc_example_polled.zip )
* AVR-HX128A1 UART interrupt and UART polled examples C source and HEX ( http://www.bravekit.com/document/AVR_boards/ATXmega128A1HB/usart_interrupt_example.zip and http://www.bravekit.com/document/AVR_boards/ATXmega128A1HB/usart_polled_example.zip )
* AVR-HX128A1 DAC example C source and HEX ( http://www.bravekit.com/document/AVR_boards/ATXmega128A1HB/dac_example.zip )
* AVR-HX128A1 GPIO ports example C source and HEX ( http://www.bravekit.com/document/AVR_boards/ATXmega128A1HB/ports_example.zip )
